Small coil 15 mic LB double shiny ED electrolytic copper foil for lithium Power battery
Description
| Type | Lithium Battery Copper Foil (Single/Double Matte) |
| Thickness | 15um |
| Width Range | 100~1300mm |
| Performance | Columnar grain structure formation. |
| Comparing with the double shiny copper foil, the double matte type is Higher in roughness, while the tensile strength and elongation is lower. |
| Application | Be used for the Li-ion battery cathode carrier and current collector. |
Application:
1. Lip: mobile phone
2. Parallel hybrid electric vehicle(PHEV)
Compare between CA copper foil and ED copper foil
1. Process:RA copper foil (Rolling process),ED copper foil (Electrodeposition process)
2. RA copper foil is a flaky crystalline structure, so the strength and toughness is better than electrolytic copper foil, so most of the rolling copper foil used in flexible printed circuit boards.
3. Width: rolling copper foil width ≤ 620mm, electrolytic copper foil width ≤ 1380mm
FAQ:
Q4: Can you supply the sample?
A: We can supply samples to check the quality before bulk order. But the price will be sample price not wholesale price.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q6. what is your standard width?
A: 520mm and 620mm,we accept customization for the width. we can cut it into any size that you demand after pass discussing.
Typical properties of electrolytic ED copper foil lithium battery
| Classification | Unit | Requirement | | Test Method |
| Foil Designation | / | | | | | | | | IPC-4562A |
| Nominal thickness | / | 6um | 7um | 8um | 9/10um | 12um | 15um | 20um | IPC-4562A |
| Area Weight | g/㎡ | 54±1 | 63±1.25 | 72±1.5 | 89±1.8 | 107±2.2 | 133±2.8 | 178±3.6 | IPC-TM-650 2.2.12.2 |
| Purity | ％ | ≥99.9 | | IPC-TM-650 2.3.15 |
| Foil Profile | Shiny side (Ra) | um | 0.1-0.4 | IPC-TM-650 2.3.17 |
| Matte side(Rz) | um | 0.8-2.0 |
| Tensile Strength | R.T.(23℃) | Mpa | ＞280 | IPC-TM-650 2.3.18 |
| H.T.(180℃) | ＞200 |
| Elongation | R.T.(23℃) | ％ | ＞5 | IPC-TM-650 2.3.18 |
| H.T.(180℃) | ＞3 |
| Pinholes&porosity | Number | No | | IPC-TM-650 2.1.2 |
| Anti-oxidization | R.T.(23℃) | day | 90 | | / |
| H.T.(160℃) | Minutes | 15 | | / |
6. Max Width,1295(±1)mm,May according to the customer request tailor.

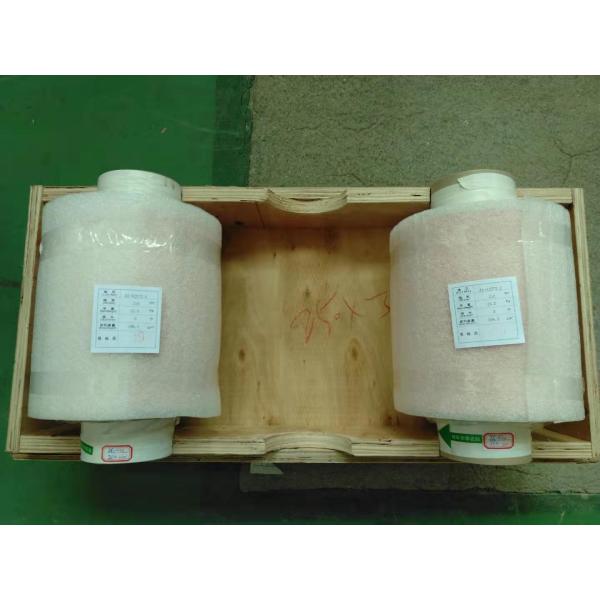

Package:wooden carton & PHOTOS
